GC Column Combiner Flow Calculator (3 Columns)

This GC column combiner flow calculator models a three-column GC configuration where two inlet capillary columns combine into a single outlet column.
It calculates individual outlet flows, flow ratios, and the intermediate junction pressure.

GC Column Combiner Flow Calculator Interface

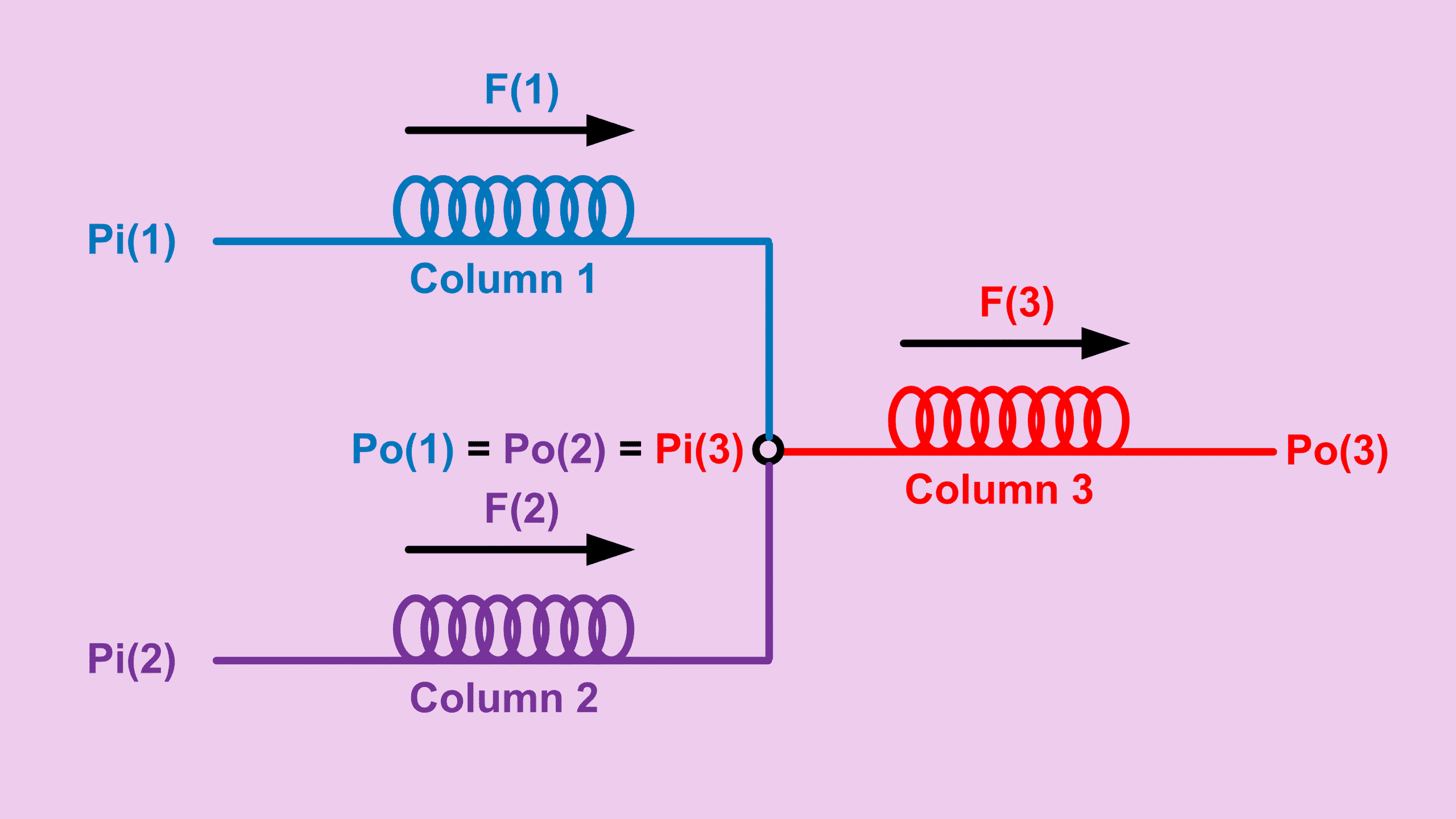

Connection Diagram

What inputs are required ?

• Dimensions and temperature of capillary column 1, 2 and 3
• Column 1 and 2 inlet pressure
• Column 3 outlet pressure
• Carrier gas

Output of GC Column Combiner Flow Calculator

• Outlet flow of column 1, 2 and 3
• Combiner junction pressure
• Combined flow ratio between column 1 and 2

Before You Go

Want to understand how this calculator works behind the scenes?
The full article with explanation will be published soon at GC Hardware.

Before you go, consider exploring:

• How the ratio affects detector load and peak shape
• Differences between combiner and splitter pressure balance
• Other GC calculators for series columns and midpoint pressure control

Correctly balancing combiner flow helps prevent backflow, pressure mismatch, and retention time drift.
